ROSS-10S Veterinary Shaver System
High-Torque Debridement & Arthroscopic Soft-Tissue Removal for Veterinary Surgery
Product Overview
The ROSS-10S Veterinary Shaver System is an advanced motorized debridement platform designed for minimally invasive orthopedic and arthroscopic procedures in small and large animals. With powerful torque output, intuitive control, and a complete portfolio of burrs and blades, the system delivers efficient soft-tissue resection, bone fragment removal, and precise joint debridement under endoscopic visualization.
Integrated with a peristaltic fluid pump, ergonomic handpiece, and touchscreen interface, the ROSS-10S enhances surgical efficiency and visibility across canine, feline, and equine arthroscopy.
Key Functional Features
• Integrated Peristaltic Fluid Pump
Provides adjustable irrigation flow to maintain joint visibility and control bleeding during arthroscopy.
• High-Torque Motor Platform
Supports demanding orthopedic debridement with stable performance even under heavy load.
• Touchscreen Operation (7 inches)
Allows precise control of speed, direction, and oscillation modes.
• Multi-Mode Handpiece Control
Forward, reverse, and oscillation modes directly controlled via handpiece buttons or footswitch.
• Autoclavable Lightweight Handpiece
Ergonomically designed for veterinarians performing fine arthroscopic maneuvers.
• Full Blade & Burr Portfolio
Compatible with 5 blade types: Clean Cut, Fast Cut, Full Radius, Oval, Round for various soft-tissue and cartilage applications.
• Quiet Operation
Operating noise as low as 60 dB.
Technical Specifications

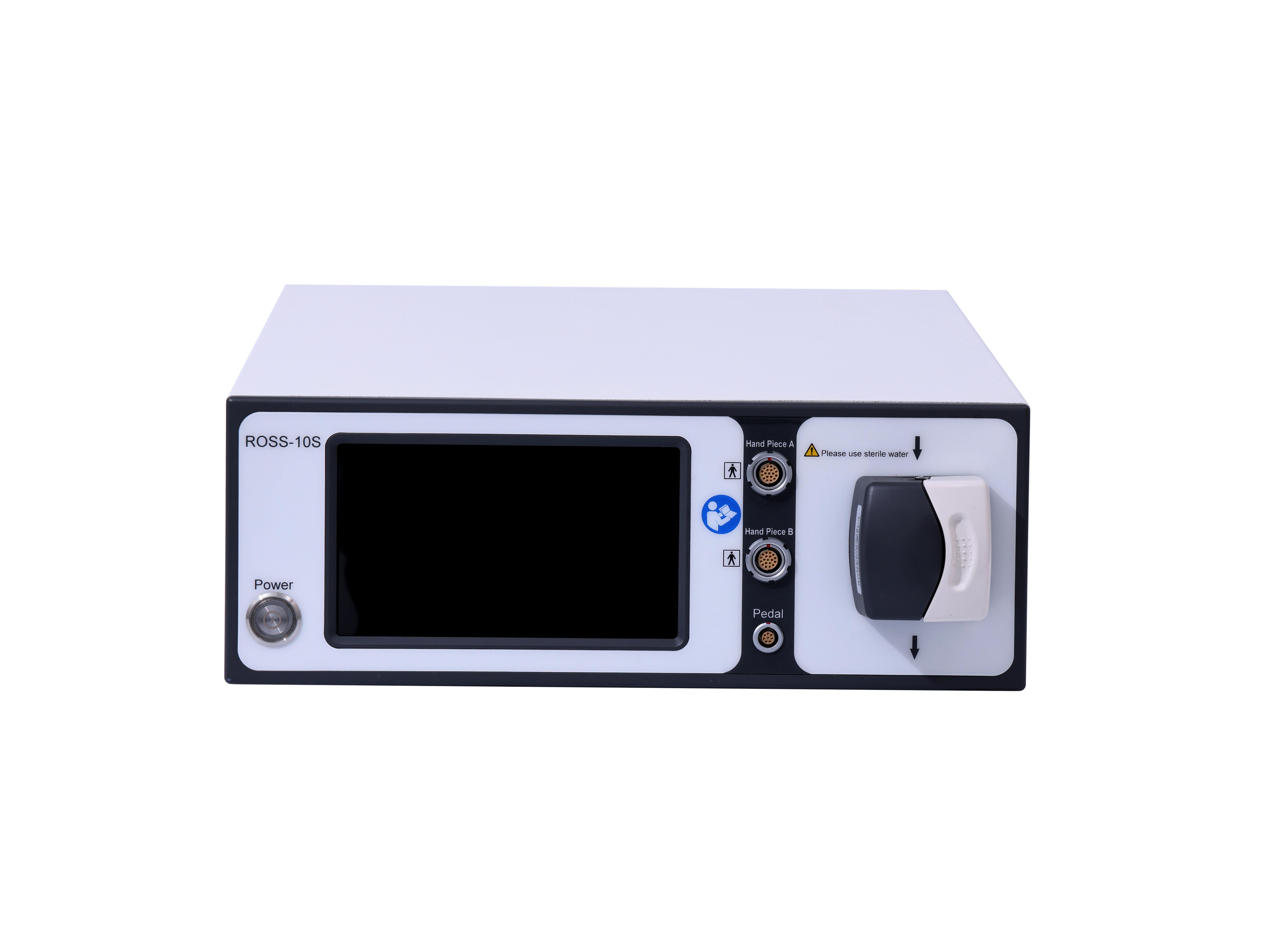

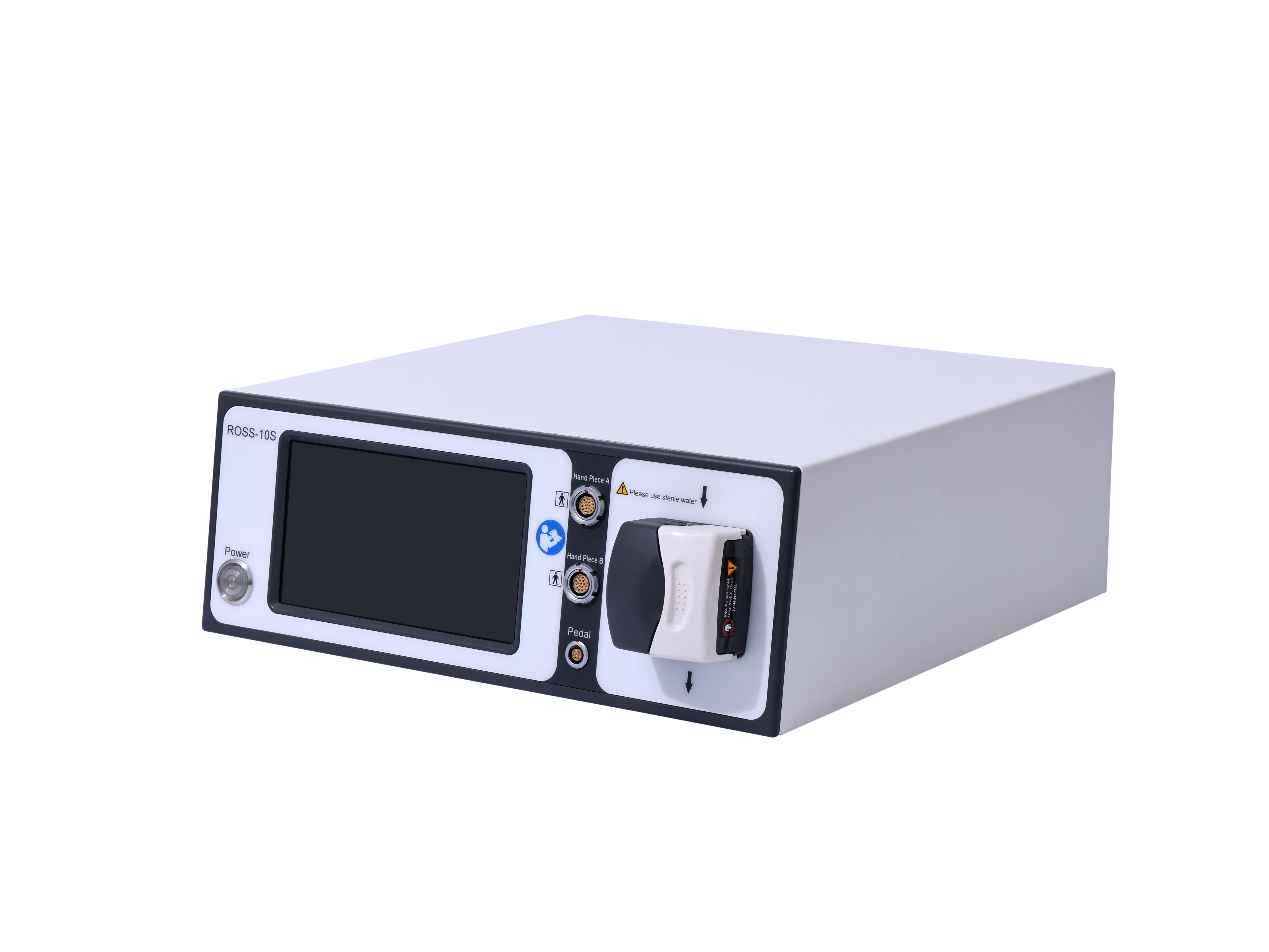

Console Unit Specifications
Parameter | Specification |
|---|---|
Touchscreen | 7-inch interface |
Irrigation Pump | Integrated peristaltic pump |
Speed Range | 1,000–10,000 rpm (forward/reverse) |
Oscillation Speed | 500–7,500 rpm |
Accuracy | ±10% |
Operating Noise | 60 dB |
Power Supply | 100–220V AC, 50 Hz |
Max Output | 160 VA |
Dimensions | 350 × 380 × 155 mm |
Weight | 8 kg |

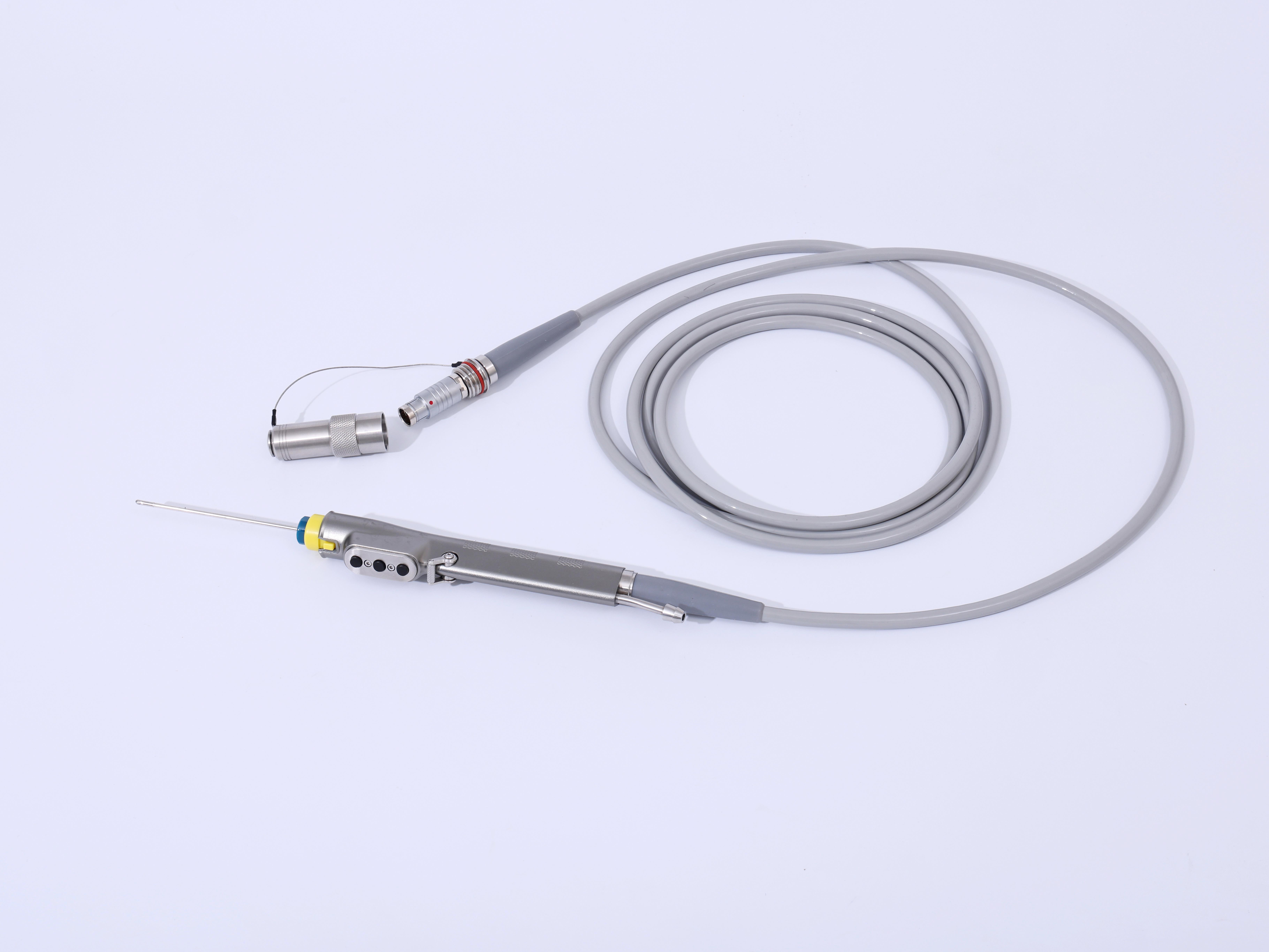

Handpiece Specifications
Parameter | Specification |
|---|---|
Speed Range | 1,000–10,000 rpm |
Oscillation | 500–7,500 rpm |
Length | 150 mm |
Diameter | 30 mm |
Sterilization | Fully autoclavable |
Controls | Forward / Reverse / Oscillation |

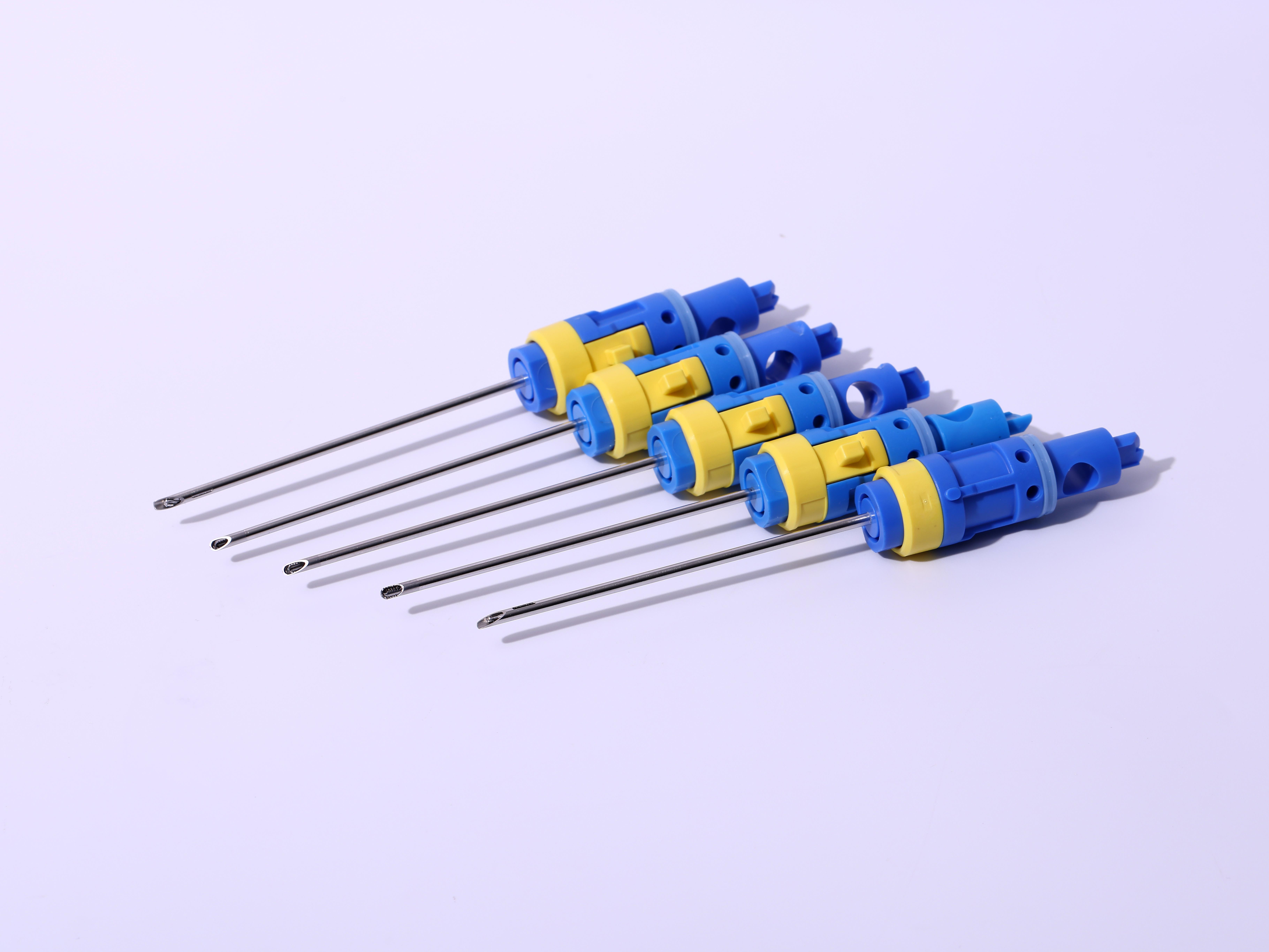

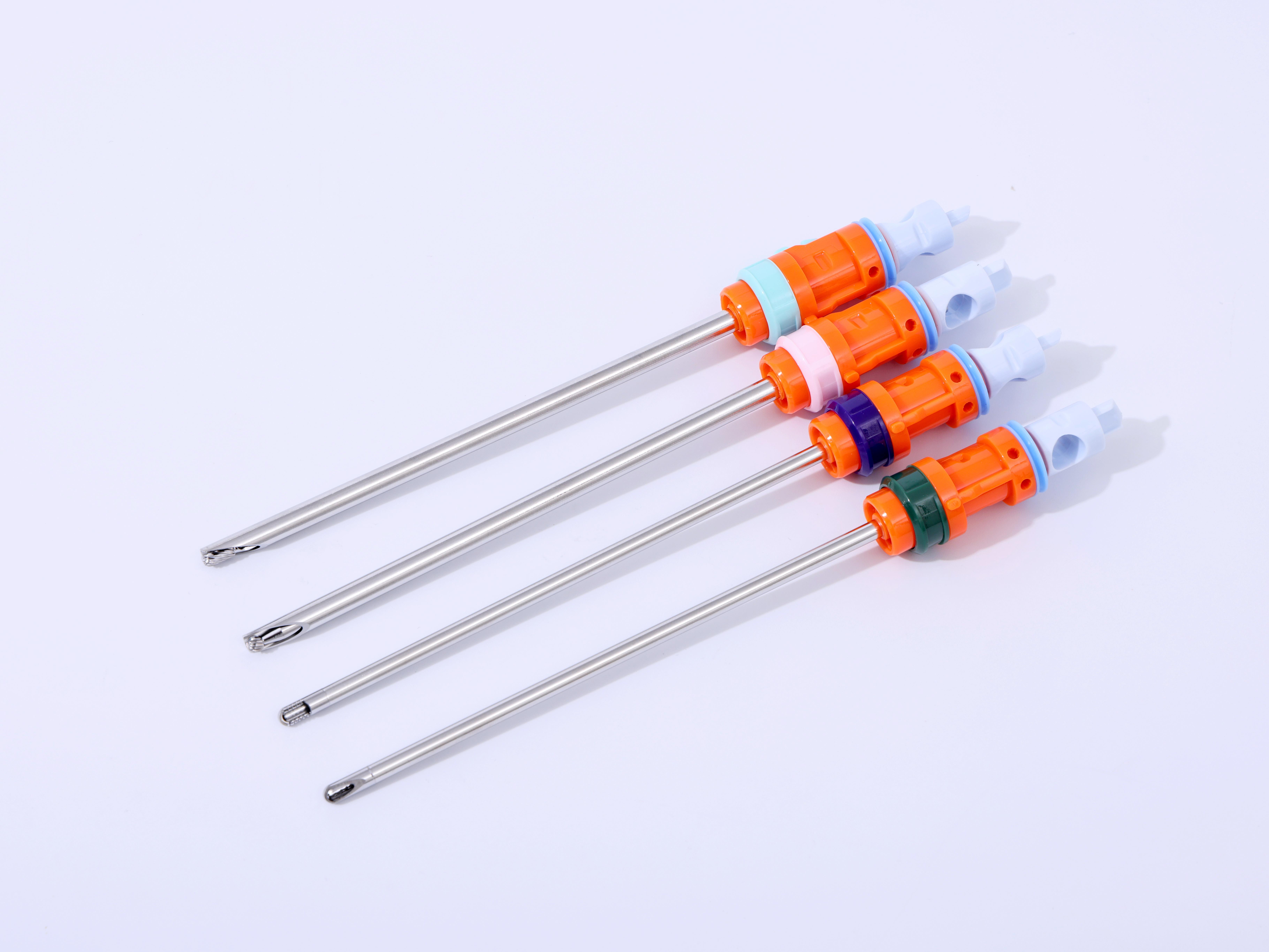

Blade Specifications
Type | Diameter | Working Length | Notes |
|---|---|---|---|
Orthopedic Blade | 4 mm / 2.5 mm | 80 mm | Surface roughness < 1.6 μm; Tip hardness > 450 HV |
Blade Types | Clean Cut, Fast Cut, Full Radius, Oval, Round | — | For cartilage, synovium, debris, aggressive trimming |
Clinical Application Scenarios
General Arthroscopy
Canine stifle, shoulder, elbow arthroscopy
Feline joint arthroscopy in tight or delicate spaces
Equine arthroscopy for debris removal & debridement
Osteochondritis dissecans (OCD) lesion removal
Meniscal injury debridement
Arthroscopic fracture repair assistance
Joint lavage during diagnostic or therapeutic procedures
Blade-Specific Clinical Use
2.5 mm Blades – Small Animal Work
Small-breed dogs
Cats (stifle, elbow)
Exotic mammals
Pediatric arthroscopy where precision is critical
4.0 mm Blades – Medium/Large Animals
Medium to large dogs (Labrador, GSD)
Equine joint cleaning in distal joints
Sports injury intervention
Aggressive cartilage or synovial resection
Package Contents (Included Accessories)
Standard Package Includes
Item | Model | Qty |
|---|---|---|
Generator | ROSS-G-001 | 1 |
Motor Handpiece | ROSS-H-001 | 1 |

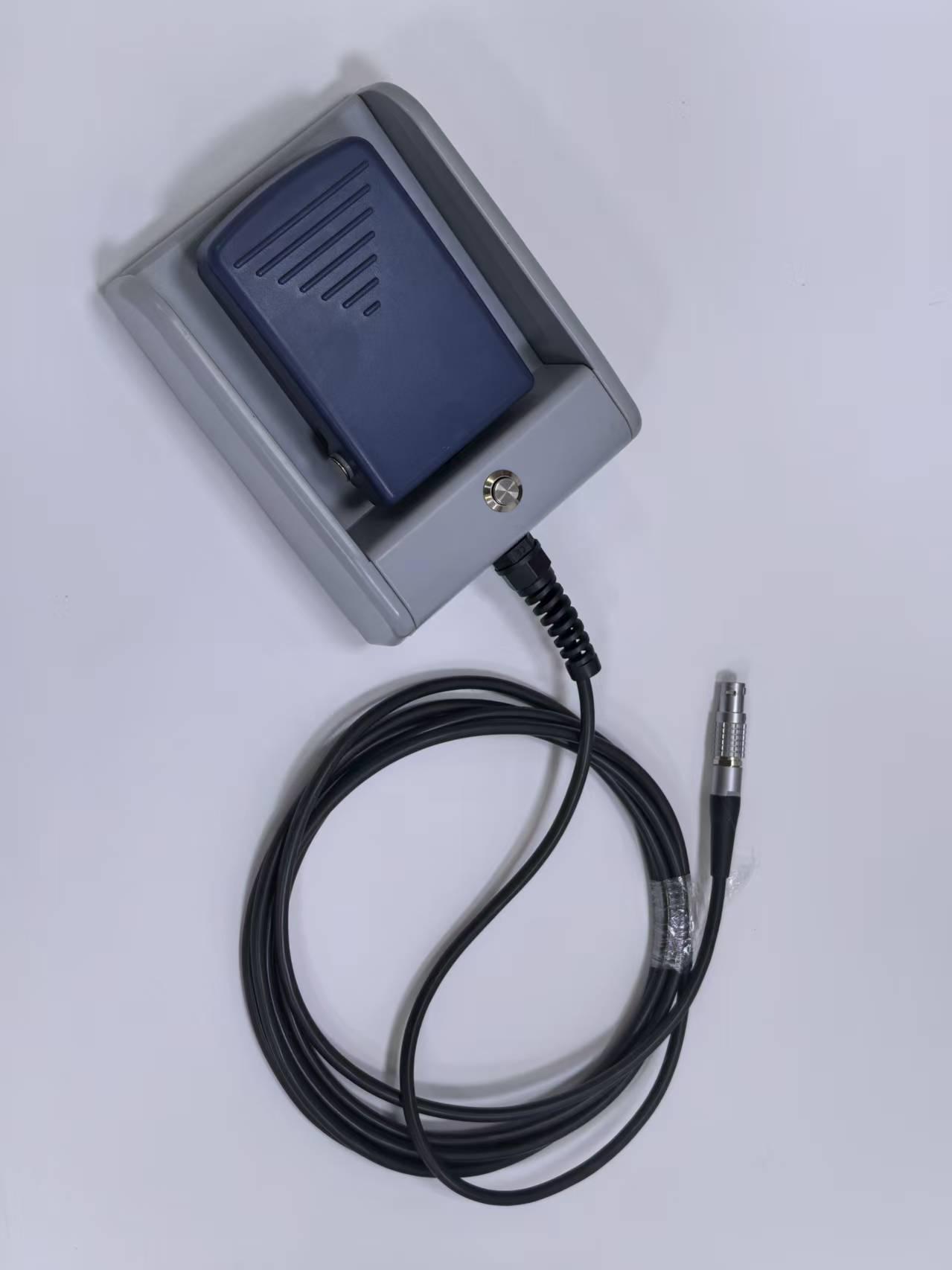

Footswitch | ROSS-FS-001 | 1 |
Full Radius Blade (2.5 mm × 80 mm) | ROSS-SA-001 | 1 |
Clean Cut Blade (2.5 mm × 80 mm) | ROSS-SA-002 | 1 |
Fast Cut Blade (2.5 mm × 80 mm) | ROSS-SA-003 | 1 |
Oval Blade (2.5 mm × 80 mm) | ROSS-SA-004 | 1 |
Round Blade (2.5 mm × 80 mm) | ROSS-SA-005 | 1 |
Fluid Needle (Two Options) | FT01 / FT02 | 1 |
Silicone Fluid Tube (4M, Ø4.8 mm/Ø6 mm) | PST-25 | 1 |

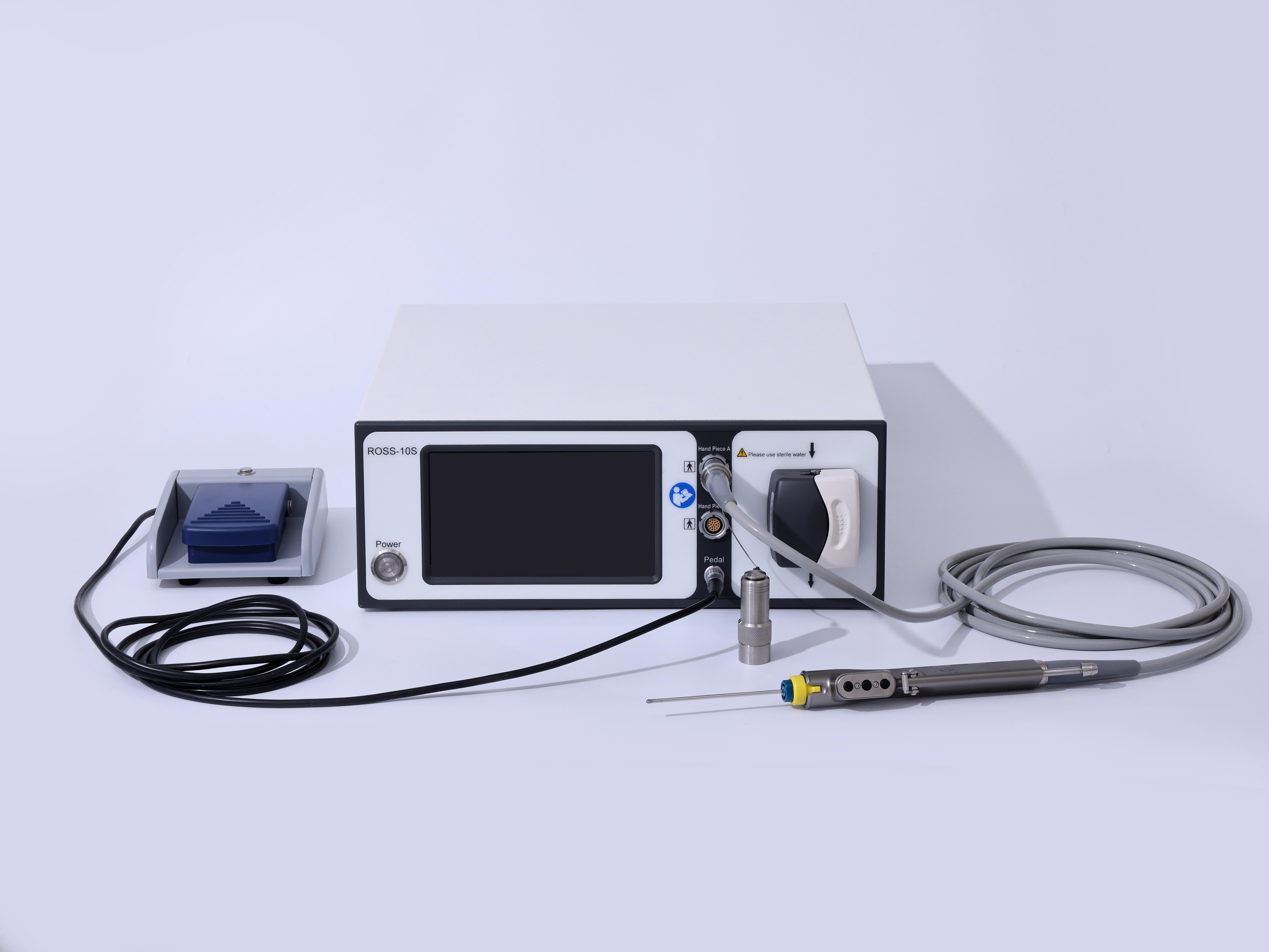

ROSS-10S Veterinary Shaver System
A high-precision arthroscopic shaver platform featuring a powerful motor, autoclavable handpiece, integrated peristaltic pump, and a complete set of specialized burrs for soft-tissue and cartilage resection. Designed for canine, feline, and equine orthopedic surgery, the system ensures efficient tissue removal, excellent visualization, and surgical control.
