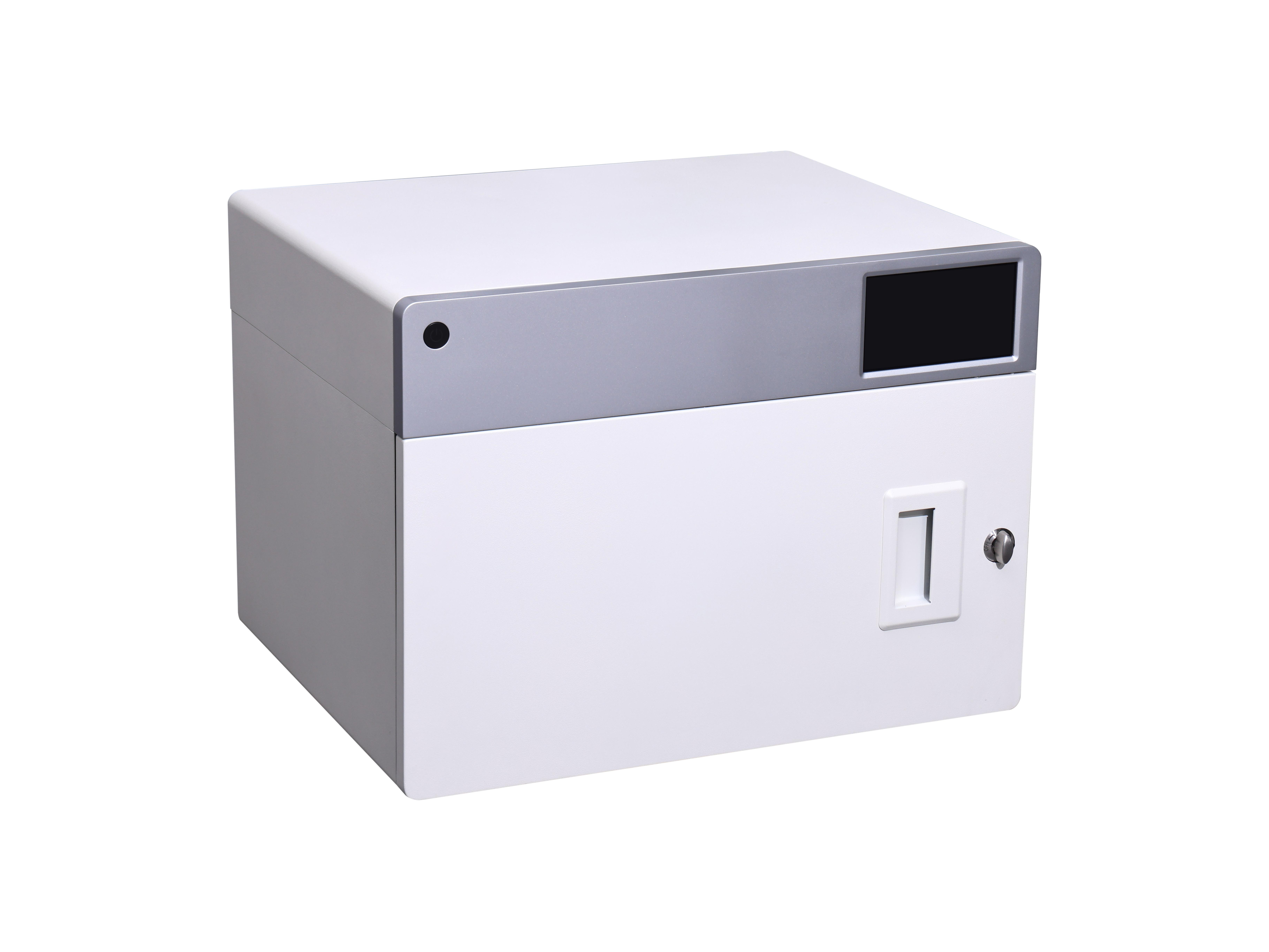

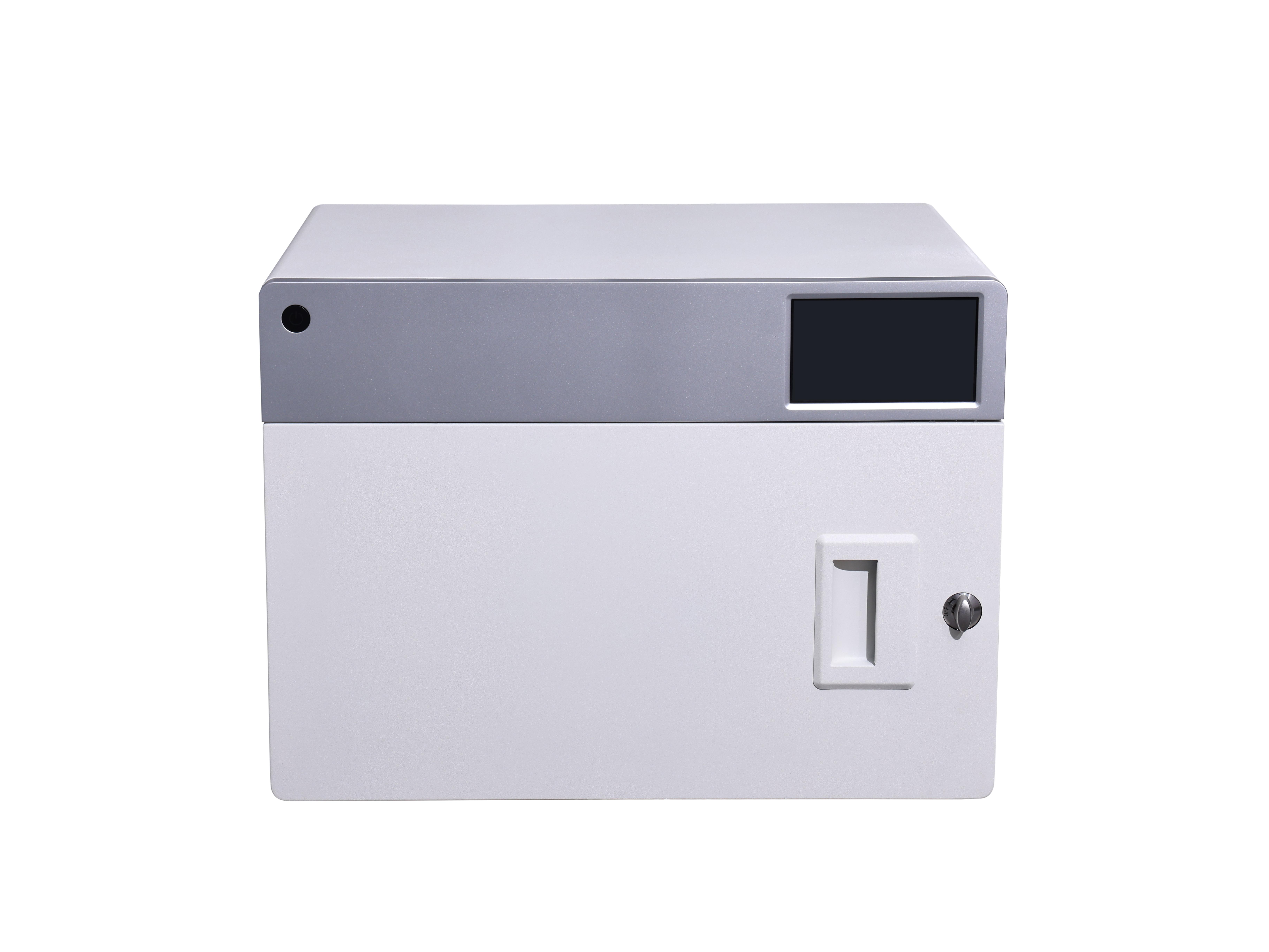

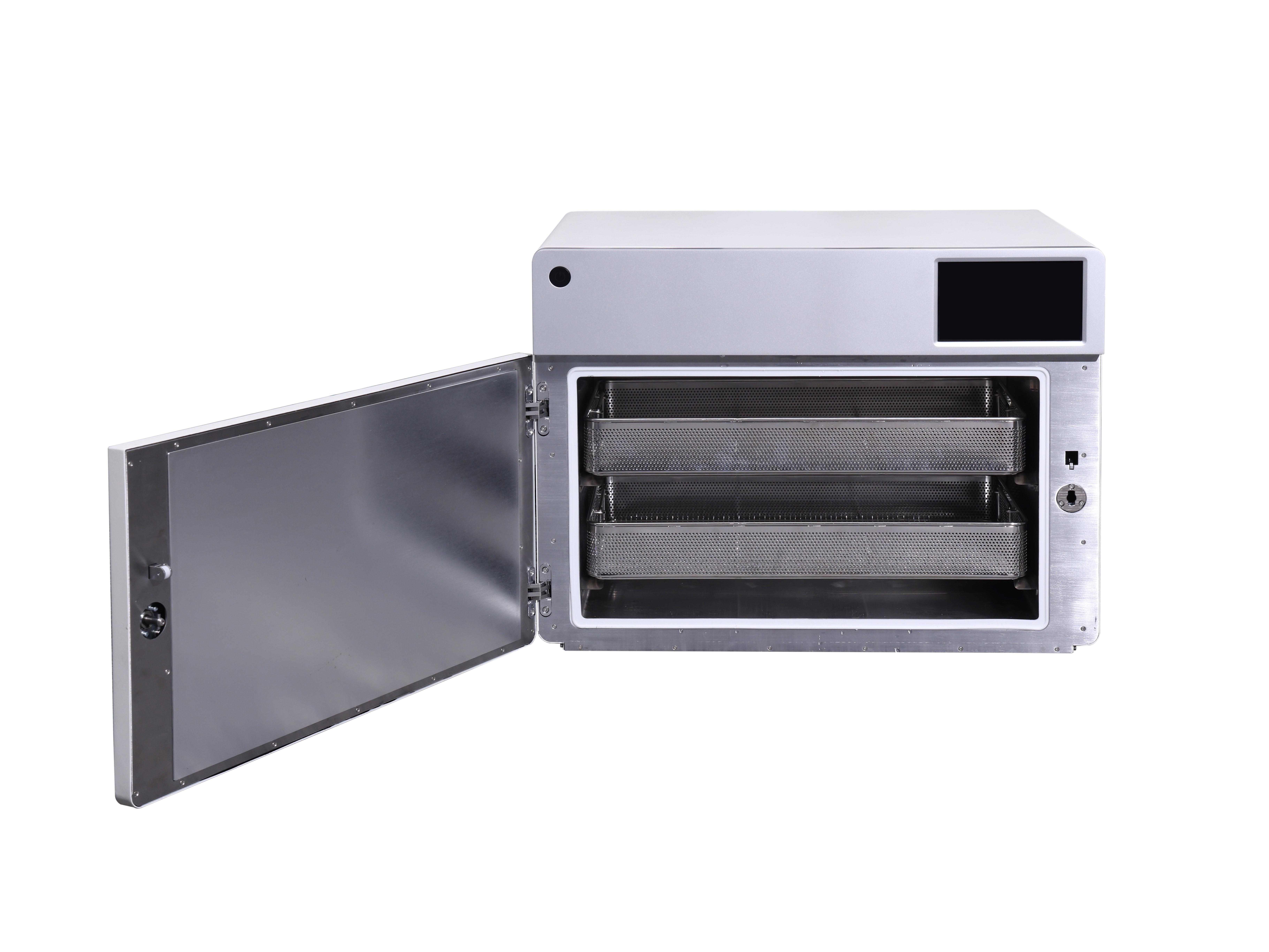

Plasma Cabinet

Advanced Low-Temperature Plasma Sterilization System

Product Introduction

The Plasma Cabinet is a next-generation low-temperature sterilization system designed for veterinary clinics, hospitals, and laboratories.

Utilizing reactive plasma technology, the system effectively inactivates microorganisms by destroying their DNA and RNA structures, ensuring reliable sterilization performance while maintaining a chamber temperature below 45°C.

With zero toxic emissions, no external ventilation requirements, and extremely low operating costs, the Plasma Cabinet provides a safe, environmentally friendly, and cost-effective alternative to traditional sterilization methods.

⸻

Key Features

•Low-temperature operation (<45°C)

•50L chamber capacity

•Standard sterilization cycle < 1.5 hours

•Three selectable working modes

•No external ventilation required

•No chemical consumables required (except indicator strip)

•Extremely low per-cycle operating cost

•Integrated vacuum system

•Built-in gas generation and exhaust decomposition system

•ISO 11138-1:2017 sterilization verification compliant

•Biological indicator ≥10⁶ spores

⸻

Technical Specifications

•Overall Dimensions: 630 × 470 × 500 mm

•Chamber Dimensions: 525 × 300 × 320 mm

•Chamber Volume: 50 Liters

•Operating Temperature: <45°C

•Operating Pressure: Vacuum

•Sterilization Method: Reactive Plasma Gas

•Standard Cycle Time: Approximately 90 minutes

•Advanced Cycle Time: Approximately 3 hours

•Power Supply: AC 100–240V, 50/60Hz

⸻

Applications

The Plasma Cabinet is suitable for sterilizing:

•Surgical instruments

•Laparoscopic instruments

•Endoscopes (rigid & flexible)

•Electrosurgical handpieces

•Optical instruments

•Heat-sensitive medical devices

•Plastic, silicone, and polymer materials

Designed for:

•Veterinary hospitals

•Specialty clinics

•Research laboratories

•Small and medium-sized medical facilities

⸻

Standard Configuration

Each unit includes:

•1 × Plasma Sterilizer Main Unit

•2 × Sterilization Trays

•1 × Power Cable

•100 × Chemical Indicator Strips

•1 × Pre-installed Catalyst Container

Optional Accessories:

•Additional Catalyst Containers

•Replacement Indicator Strips

•Additional Sterilization Trays
