Veterinary 4K Fluorescence Endoscopic Camera System
Ultra-High-Definition Imaging with Advanced Fluorescence Technology
Product Overview
The Veterinary 4K Fluorescence Endoscopic Camera System is an advanced surgical visualization platform that integrates true 4K UHD resolution with multi-mode fluorescence imaging (green, yellow, red, cyan, purple, etc.). It delivers exceptional anatomical detail, improved tissue contrast, and enhanced intraoperative navigation for safer and more precise surgical outcomes.
Featuring a triple-split display, BT.2020 color spectrum, and multiple fluorescence color modes, the system enables real-time identification of vessels, lymph nodes, bile ducts, nerves, and tumors—significantly elevating diagnostic accuracy and surgical confidence.
Key Features
• 3840×2160 Ultra HD 4K Resolution
Provides extremely clear visualization of fine anatomical structures such as capillaries and nerves, supporting accurate surgical decisions.
• Multi-Mode Fluorescence Imaging
Supports six fluorescence color modes, enabling visualization of different tissue types with improved contrast. Includes ICG fluorescence enhancement to detect faint signals during surgery.
• Triple-Split Display
Allows surgeons to view white light, fluorescence, and enhancement modes simultaneously for fully informed decision-making.
• BT.2020 Wide Color Gamut
Produces highly realistic color reproduction, enhancing differentiation between fat, muscle, vasculature, and pathology.
• Adjustable Fluorescence Enhancement
Supports real-time contrast optimization for low-signal tissue regions.
• Multiple Monitor Options
Available in 21″, 27″, and 32″ for immersive surgical visualization.
Applicable Surgical Fields
Hepatobiliary Surgery
ICG fluorescence guidance for bile duct and liver segment visualization
Safer dissection and improved precision in hepatic resections
Thoracic Surgery
Fluorescence-guided lung segment identification
Detection of lymph nodes and thoracic tumors
Gynecology
Sentinel lymph node mapping
Tumor localization in reproductive oncology
Gastroenterology
Enhanced contrast for GI tumor margins and vascular structures
Applications in colorectal and gastric interventions
Urology
Identification of ureters, lymphatic structures, and tumors in nephrectomy or bladder tumor resection
Technical Parameters
(UE 4K-R100 Configuration Sheet – Page 4–5)

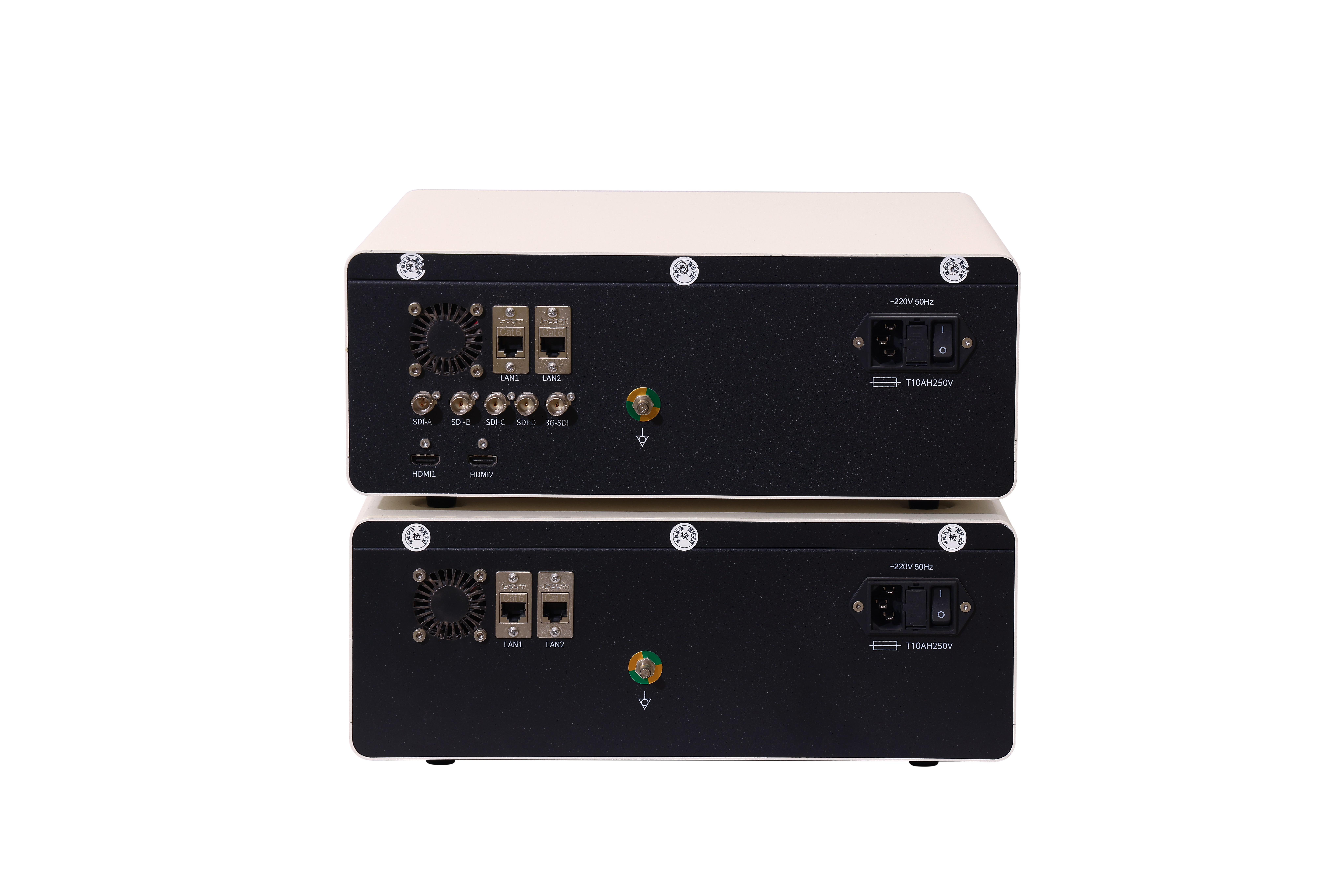

1. 4K Image Processing Center (CIS-400)
Output Resolution: 3840×2160, 1920×1080
Imaging Modes: Thoracoscopy, Hysteroscopy, Fiberscope, ENT
Image Controls: White balance, digital zoom, sharpness, brightness, fluorescence mode, noise reduction, color enhancement
Output: HDMI×2, 3G-SDI×4, HD-SDI×1
2. Medical Endoscopic Light Source (LS-400)
Illumination: White light
Color Temperature: 5000–6500K
3. 4K Ultra HD Camera Head (FH-185)
Zoom range: Motorized
Image controls: Anti-fog, contrast, exposure correction, fluorescence display
Sterilization: Low-temperature hydrogen peroxide / ETO
4. 4K Display Monitor (MM-400)
Resolution: 3840×2160
Aspect Ratio: 16:9
5. 4K Fluorescence Scope – 5 mm (FS-400-5)
Viewing Angle: 30°
Diameter: 5 mm
Working Length: 330 mm
Sterilization: Autoclave, Plasma, ETO
Operating Conditions
Temperature: 5°C–40°C
Humidity: 30%–80%
Pressure: 700–1060 hPa
Power Input: ~220V, 50Hz, 2A
Package Contents (Included Accessories)
Standard 4K System Includes
4K Image Processing Center (CIS-400)
Medical Endoscopic Light Source (LS-400)
4K Ultra HD Camera Head (FH-185)
4K Fluorescent Scope (5 mm, 30°, FS-400-5)
4K Display Monitor (21″, 27″, or 32″)
Light Guide Cable (LGC-01)
White-Light Coupler (CR-01)
Fluorescence Coupler (CR-02)
Power & Connection Cables
Veterinary 4K Fluorescence Endoscopic System
A next-generation surgical imaging platform combining true 4K resolution with advanced multi-mode fluorescence. Designed for hepatobiliary, thoracic, gynecologic, GI, and urologic procedures, it enhances tissue contrast, supports real-time surgical navigation, and provides outstanding visualization with 5 mm fluorescence scopes and 4K camera technology.
